Research-Input_Combos

I am Gerard Marcos, student of the Bachelor’s Degree in Video Games by UPC at CITM. This content is generated for the second year’s subject Project 2, under supervision of lecturer Ricard Pillosu.

About

Repository: Click here

Webpage: Click here

Presentation: Click here

Index

Introduction
- Presentation blocks
- What is a combo?
Block I: Deeping into the subject
- Combo differentiation
  - Time dependency
  - Immediate and holding input
  - Degree of freedom
  - Definition & input scheme
Block II: Code structure
- Input storage
- Memory management
- The implementation in-depth
Code exercises
Extra concepts

Content

1. Introduction

This project main objective is to learn how to implement an input combo system using C++, the SDL library and pugixml library.

1.1. Presentation blocks

The project is divided by two main sections. On the one hand, the first one includes several essential theorical concepts. This way, we have many options to choose from so we can implement it in our projects. On the other hand, the second one includes the code structure of the implementation, with its explanations of the practical concepts.

Note that there are coding exercises in order to understand the system a lot better and learn it quickly and effectively.

1.2. What is a combo?

Wikipedia’s definition of combo is: set of actions performed in sequence, usually with strict timing limitations, that yield a significant benefit or advantage.

This definition is incorrect, in the “usually with strict timing limitations”. We’ll get into the correct definition soon.

2. Deeping into the subject

Let’s learn new concepts related to a combo.

2.1. Combo differentiation

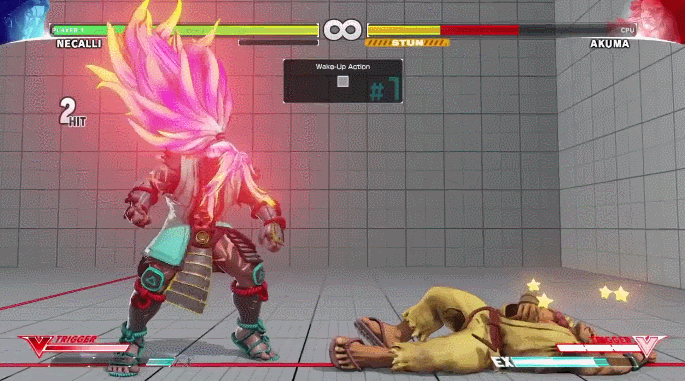

Between the two images above, we can say that there is the first main factor that differentiates different combo types: the time.

In the first image, the timing is not important at all. And in the second image, the combo is determined by the timing of the user.

2.1.1. Time dependency

We can divide a comby by two types:

Time-independent: Only composed by single inputs, meaning only one button is pressed after the previous one.
- Single input
Time-dependent: Composed by single inputs, parallel inputs, meaning multiple buttons can be pressed at the same time, and a mix of the two.
- Single input
- Parallel input
- Single & parallel input

2.1.2. Immediate and holding input

It is also necessary to differentiate if an input is immediate or holded. Consequently, if the input is immediate, the videogame will have more frenetic, frenzy and active gameplay; the opposite happens when the input is holded.

Therefore, the second main factor that determines a combo is the time pressing a button.

A very clear example of the immediate input is the videogame Street Figther II, and another clear example of the holding input is the videogame Heavy Rain.

2.1.3. Degree of freedom

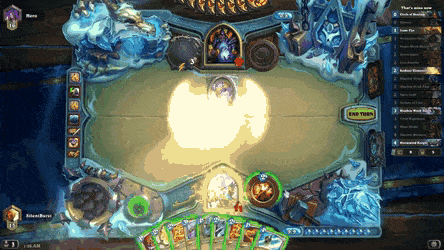

The third main factor that determines a combo is its degree of freedom. This means that the chain of input events of a combo can be checked (or not). For a better understanding of this, a good example is the videogame Hearthstone. The combos aren’t determined by the developers, but the input events still create a combo. For instance, the combos can be determined by the development team, like Tekken 7, for instance, in which the combo chain needs to be like the predefined combo chain in order to execute the combo. Therefore:

Input degrees of freedom
- Defined: Determined chains, checked chains.
- Undefined Undetermined chains, unchecked chains.

2.1.4. Definition & input scheme

That being said, the final and correct definition for combo is:

Combo: Set of actions performed in sequence, with or without strict timing limitations, that yield a significant benefit or advantage.

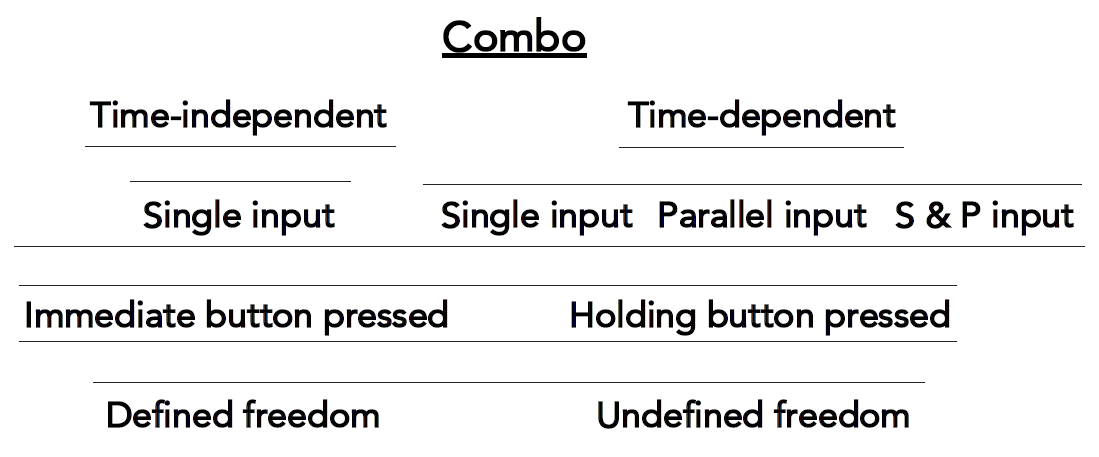

Here there is also a scheme focusing on the aspects stated above.

It must be clear what the objectives of the videogame are, and select the input combo types from the scheme, depending on the gameplay and user experience.

3. Code structure

Now let’s get into the code and practical part, where an input combo system is implemented.

3.1. Input storage

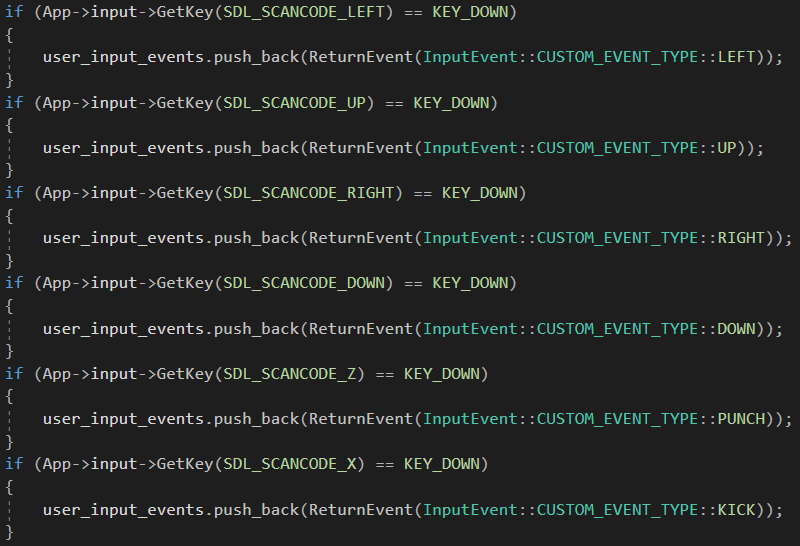

We need to save every input event whenever the user presses a key or button. Hence, we follow the user inputs by input tracking.

In a list, we store the user inputs. It works as a buffer. It has no limit, but it could be a potential future implementation. But remember that we also need to store the predefined combos and its input events! The combos and its input events that form a combo are stored in a vector.

The development team need to define the combos in a .xml file, following an existing structure.

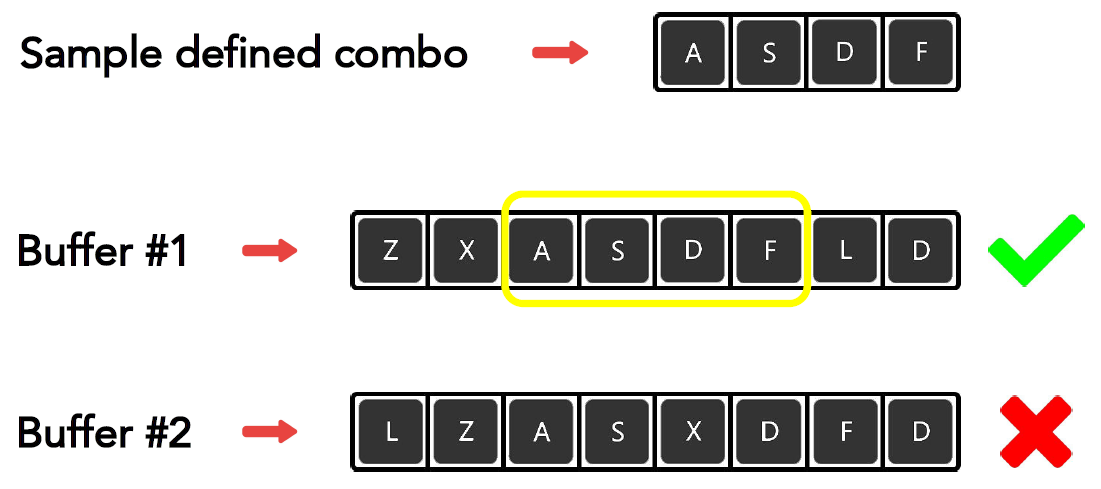

The key here is to check if the array of the input events that are stored in every combo exists in the same order in the buffer.

For instance:

3.2. Memory management

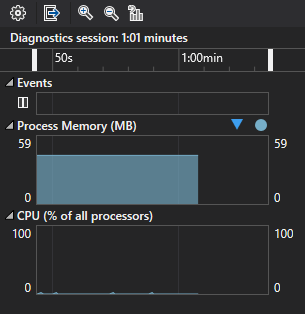

There is no way we can’t store all these input events in the buffer forever. Therefore, we need to create some rules in order to decide when to delete these input events. Note that the input events are dynamically allocated in memory.

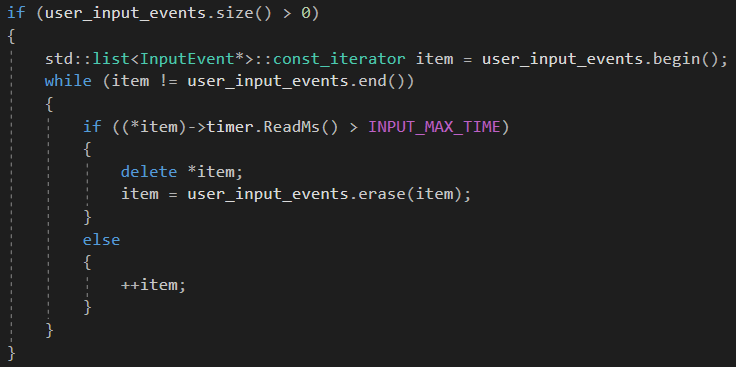

First rule: We define a maximum time limit for every input event. We activate a timer for every input event and, if it exceeds the maximum time limit, we delete this input event from the buffer.

Second rule: When the user completes a combo, we delete all the input events that are stored inside the buffer.

3.3. The implementation in-depth

Application module: j1InputCombos

#ifndef __J1INPUTCOMBOS_H__
#define __J1INPUTCOMBOS_H__

#include <list>
#include <vector>

#include "j1Module.h"
#include "j1PerfTimer.h"
#include "InputEvent.h"

#define INPUT_MAX_TIME 5000.0f

class InputCombo;

class j1InputCombos : public j1Module
{
public:
	j1InputCombos();
	~j1InputCombos();

	bool Awake(pugi::xml_node& config);

	bool Start();

	bool PreUpdate();
	bool PostUpdate();

	bool CleanUp();

	// ---------

	InputEvent* ReturnEvent(InputEvent::CUSTOM_EVENT_TYPE event_type);

	void DeleteTimingEvents();
	void ClearInputBufferAfterCombo();

	void ClearInputBuffer();
	void ClearCombosVector();

private:
	std::list<InputEvent*> user_input_events;

private:
	std::vector<InputCombo*> combos;
};

#endif // __J1INPUTCOMBOS_H__

InputCombo class: InputCombo

#ifndef __INPUTCOMBO_H__
#define __INPUTCOMBO_H__

#include <vector>
#include <list>

class InputEvent;

class InputCombo
{
public:
	enum class COMBO_NAME
	{
		HADOUKEN,
		SHORYUKEN
	};

public:
	InputCombo();
	~InputCombo();

	void FillComboChain(InputEvent* input_event);

	bool CheckCommonInput(std::list<InputEvent*> input_event);

public:
	std::vector<InputEvent*> vector_item;
	COMBO_NAME combo_name;
};

#endif // __INPUTCOMBO_H__

InputEvent class InputEvent

#ifndef __INPUTEVENT_H__
#define __INPUTEVENT_H__

#include "j1Module.h"
#include "j1PerfTimer.h"

class InputEvent
{
public:
	enum class CUSTOM_EVENT_TYPE
	{
		UNKNOWN = -1,

		LEFT,
		RIGHT,
		UP,
		DOWN,
		PUNCH,
		KICK
	};

public:
	InputEvent(CUSTOM_EVENT_TYPE type, bool use_of_timer = false);
	~InputEvent();

public:
	j1PerfTimer timer;
	CUSTOM_EVENT_TYPE type = CUSTOM_EVENT_TYPE::UNKNOWN;
};

#endif // __INPUTEVENT_H__

4. Code exercises

TODO 1:

Create another combo. Place any inputs you want! Guess what the attribute “name” of the combo should be. Investigate through the code for some clues. We can add another input_event type called “kick”.

Location: Input_Combos/Config/config.xml

TODO 2:

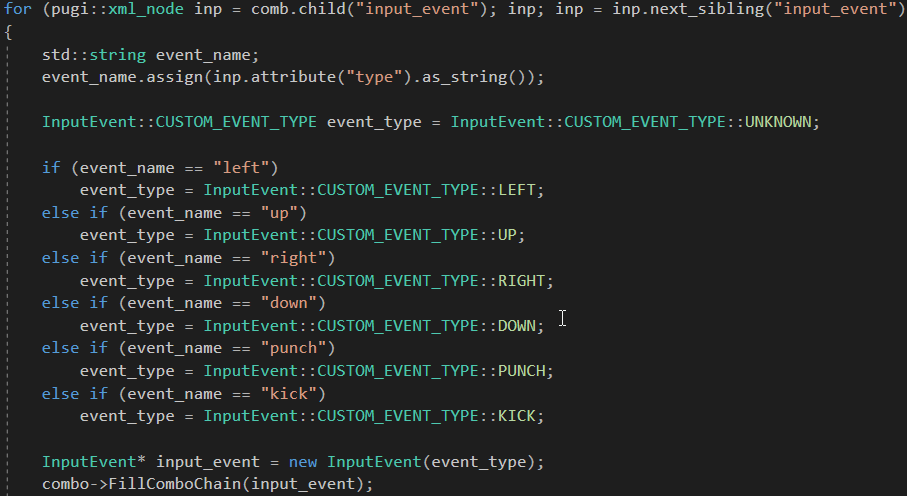

We need to fill every combo creation. Think about where we can push every input event to the combo. Hint -> we need to call a function located in InputCombo.h/.cpp. Notice another hint in the code.
